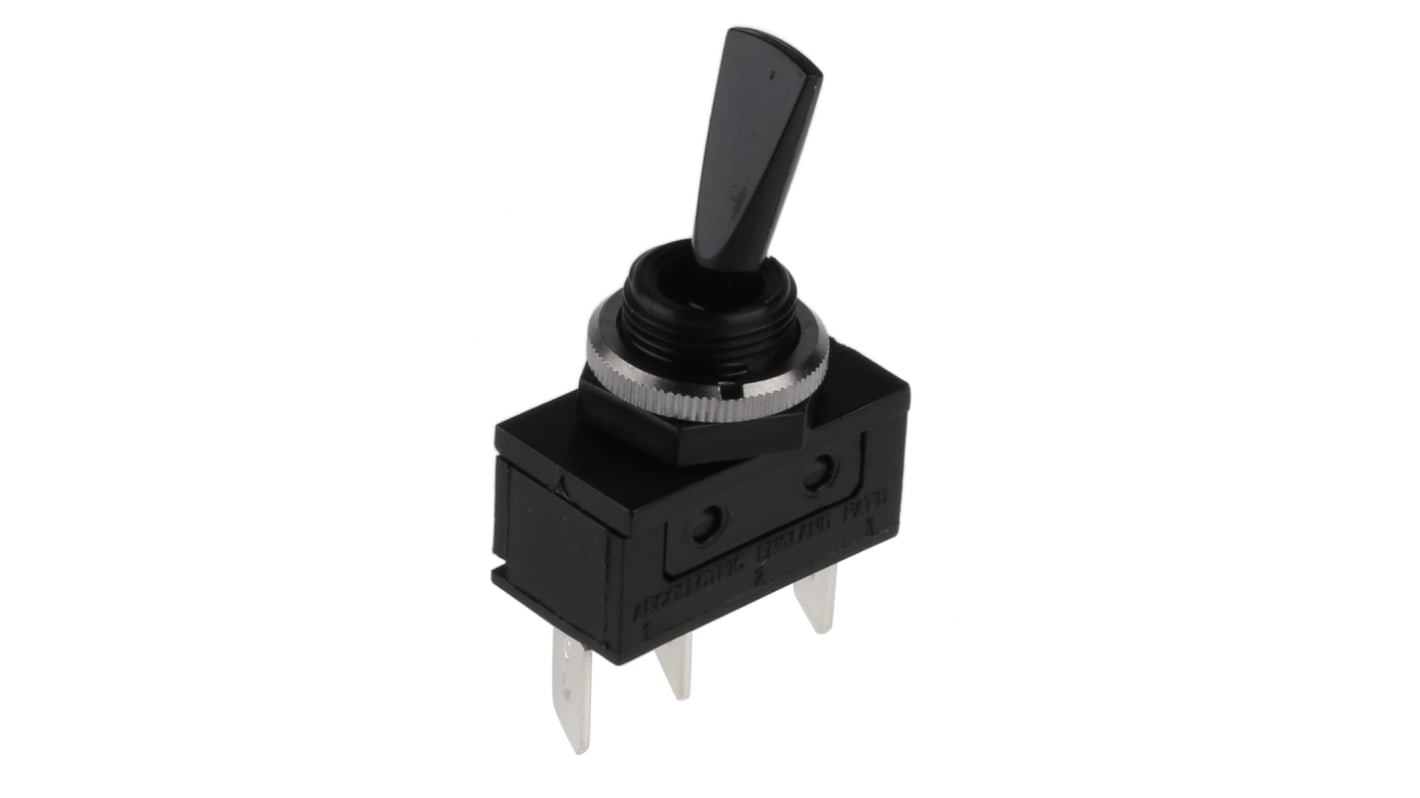

Arcolectric (Bulgin) Ltd Toggle Switch, Panel Mount, (On)-(On), SPDT, Tab Terminal, 250V ac
- RS庫存編號:
- 350-210
- 製造零件編號:
- C1710HOAAC
- 製造商:
- Arcolectric (Bulgin) Ltd
可享批量折扣
Price 个**
HK$25.10
980 現貨庫存，可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
即時庫存查詢
單位 | 每單位 |
|---|---|
| 1 - 24 | HK$25.10 |
| 25 - 49 | HK$24.40 |
| 50 - 99 | HK$23.80 |
| 100 - 249 | HK$23.50 |
| 250 + | HK$23.20 |
** 參考價格
- RS庫存編號:
- 350-210
- 製造零件編號:
- C1710HOAAC
- 製造商:
- Arcolectric (Bulgin) Ltd
- COO (Country of Origin):
- TN
Toggle Switches, Std, 16 A Insulated
Insulated toggle switches, moulded in nylon 6.6 and BEAB approved to EN61058-1
Connection by 250 ( 1/4 in. push-on receptacles, or soldering)
For use where metal switches are unsuitable
Suitable for Class II double insulated equipment
IP40
Polycarbonate actuator and Nylon 6.6 case
Connection by 250 ( 1/4 in. push-on receptacles, or soldering)
For use where metal switches are unsuitable
Suitable for Class II double insulated equipment
IP40
Polycarbonate actuator and Nylon 6.6 case
Note
For biased switches '(on)' refers to momentary 'on' position
Approvals
ENEC, UL recognised component, CSA certified
Bulgin Toggle Switch, 20A Contact Rating, SPDT Configuration - C1710HOAAC
This toggle switch is an SPDT (Single Pole, Double Throw) switch designed for panel mounting applications. It accommodates a contact current rating of 20A at 250V AC and features a durable nylon actuator measuring 16.4mm in length. This switch is rated to IP40, making it suitable for use in environments where dust exposure is a concern.
Features & Benefits
• Complies with UL standards for industry acceptance
• Silver alloy contact reduces resistance for efficient operation
• Panel mount design facilitates easy installation
• Maximum operating temperature of +85°C for versatile usage
• Silver alloy contact reduces resistance for efficient operation
• Panel mount design facilitates easy installation
• Maximum operating temperature of +85°C for versatile usage
Applications
• Ideal for use in industrial automation control panels
• Suitable for electrical equipment requiring reliable switching
• Can be utilised in machinery where durable toggle operation is necessary
• Effective in automotive needing reliable circuit control
• Suitable for electrical equipment requiring reliable switching
• Can be utilised in machinery where durable toggle operation is necessary
• Effective in automotive needing reliable circuit control
What is the significance of the SPDT configuration in this switch?
The SPDT configuration allows for versatile circuit connections, enabling the control of multiple circuits from a single switch position, which is essential in applications requiring varied operational functions.
How does the IP40 rating benefit application in industrial environments?
An IP40 rating ensures protection against solid objects larger than 1mm, making the switch suitable for use in controlled environments where dust ingress could affect performance.
What makes the nylon actuator an appropriate choice for this switch?
The nylon actuator provides excellent resistance to wear and environmental damage while ensuring a firm grip, which is crucial for reliable toggling in industrial applications.
Can this switch handle inductive loads?
While it is rated for non-inductive loads up to 20A, it can also manage certain inductive loads
however, it is advised to consult load specifications to ensure compatibility.
Approvals
ENEC, UL recognised component, CSA certified
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | (On)-(On) |
| Contact Current Rating | 20 A @ 250 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Tab |
| IP Rating | IP40 |
| Panel Cut Out Diameter | 12.7mm |
| Actuator Length | 16.4mm |
| Actuator Material | Nylon |
| Voltage Rating | 250V ac |
| Contact Resistance | 100mΩ |
| Contact Material | Silver Alloy |
| Panel Cut Out Size | 12.7mm |
| Standards Met | UL Recognized |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | Maximum of +85°C |
