Microchip WILCS02PE-I/100 3.6V WiFi Module, SPI, SDIO

Name: Microchip WILCS02PE-I/100 3.6V WiFi Module, SPI, SDIO
Brand: Microchip
SKU: 301-084
Price: 77.5 HKD
Availability: InStock

小計（1 件）*

HK$77.50

有庫存

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$77.50

* 參考價格

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Product Type	WiFi Module
	Supported Security Standards	ECDSA, ECDH, ECC, AES, SHA-1, SHA-2, TDES, WPA3, RSA
	Output Power	19dBm
	Frequency	2.4GHz
	Height	2.1mm
	Interface Type	SPI, SDIO
	Length	21.7mm
	Minimum Supply Voltage	3V
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Supported Protocols	SPI, SDIO
	Maximum Operating Temperature	105°C
	Series	WILCS02
	Standards/Approvals	Wi-Fi Alliance, UKCA, RoHS, REACH, ISED, IEEE 802.11b/g/n, FCC, CE Radio Regulations

	選取全部
	品牌 Microchip
	Product Type WiFi Module
	Supported Security Standards ECDSA, ECDH, ECC, AES, SHA-1, SHA-2, TDES, WPA3, RSA
	Output Power 19dBm
	Frequency 2.4GHz
	Height 2.1mm
	Interface Type SPI, SDIO
	Length 21.7mm
	Minimum Supply Voltage 3V
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Supported Protocols SPI, SDIO
	Maximum Operating Temperature 105°C
	Series WILCS02
	Standards/Approvals Wi-Fi Alliance, UKCA, RoHS, REACH, ISED, IEEE 802.11b/g/n, FCC, CE Radio Regulations

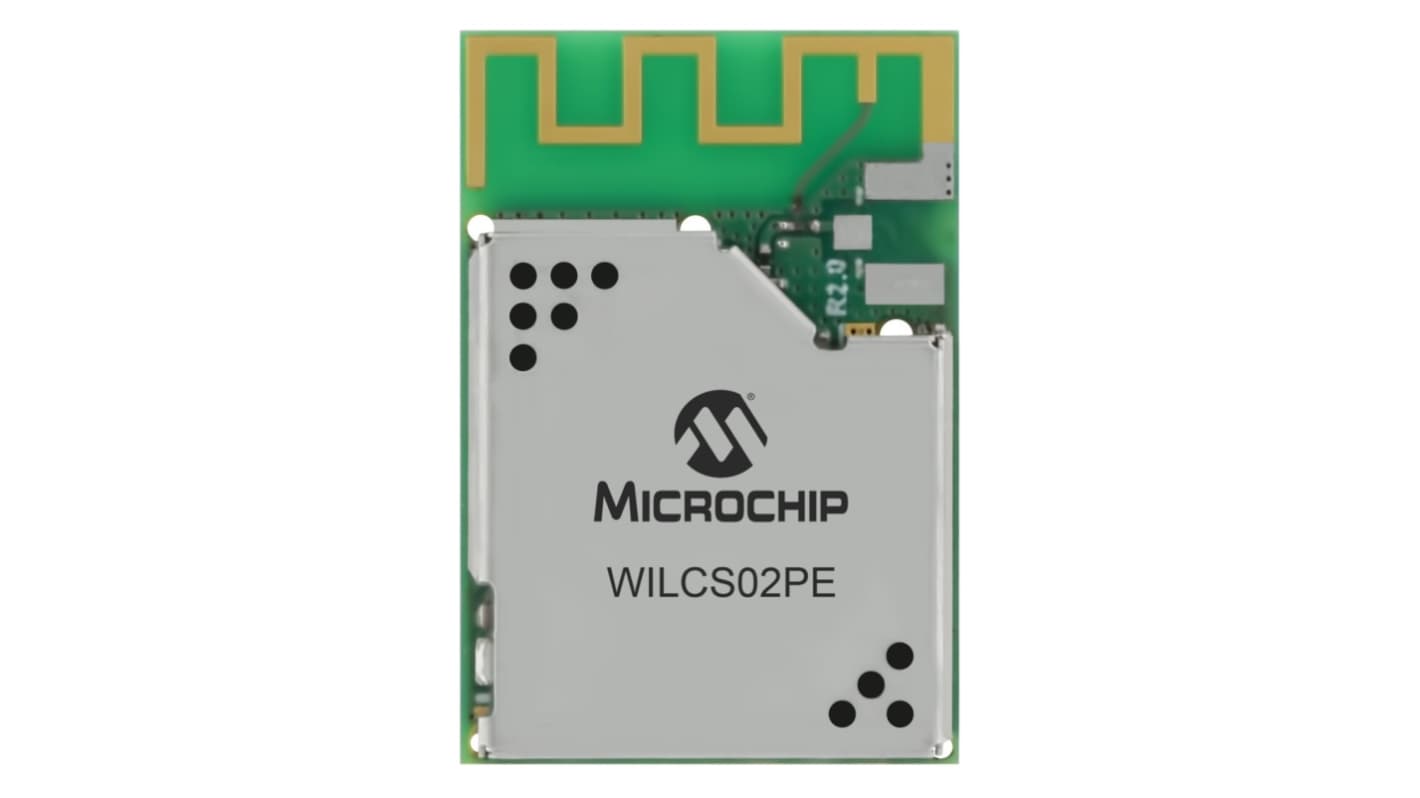

The Microchip Wi-Fi Link Controller Module is a 2.4-GHz IEEE 802.11 b g n Wi-Fi link controller module with secure boot and PCB antenna.

Enables Wi-Fi connections in Linux applications using an SPI/SDIO interface

Immutable secure boot with hardware root of trust

Integrated power amplifier (PA) and TX/RX switch with power management

Supports WPA3 personal and WPA Enterprise security

Linux driver available in Linux4Microchip based on Kernel 6.6
