Lascar EL-BT-2 Temperature & Humidity Data Logger, USB, 1 Input Channel(s)

查看所有Data Loggers
暫時無法供應
我們不知道此物品是否會到貨，因為製造商正在對其逐步停產。
RS庫存編號:
910-7065
製造零件編號:
EL-BT-2
製造商:
Lascar
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Lascar

Number of Input Channels

1

Model Number

EL-BT-2

Sensor Type

Humidity, Temperature

Measurement Parameters

Humidity, Temperature

Interface Type

USB

Data Logger Type

Temperature & Humidity

Maximum Temperature Measurement

+60 °C

Power Source

Battery

Best Temperature Measurement Accuracy

±0.5°C

IP Rating

IP55

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+60°C

Display Type

LCD

Battery Life

6 Months

Maximum Humidity Measurement

100%RH

Temperature Measurement Resolution

0.1°C

Number of Readings Per Channel

500000

Best Humidity Measurement Accuracy

±2 %RH

Dimensions

102 x 51 x 20mm

Alarm

Yes

Humidity Measurement Resolution

0.1%RH

Battery Type

Rechargeable Lithium-Ion

COO (Country of Origin):
CN

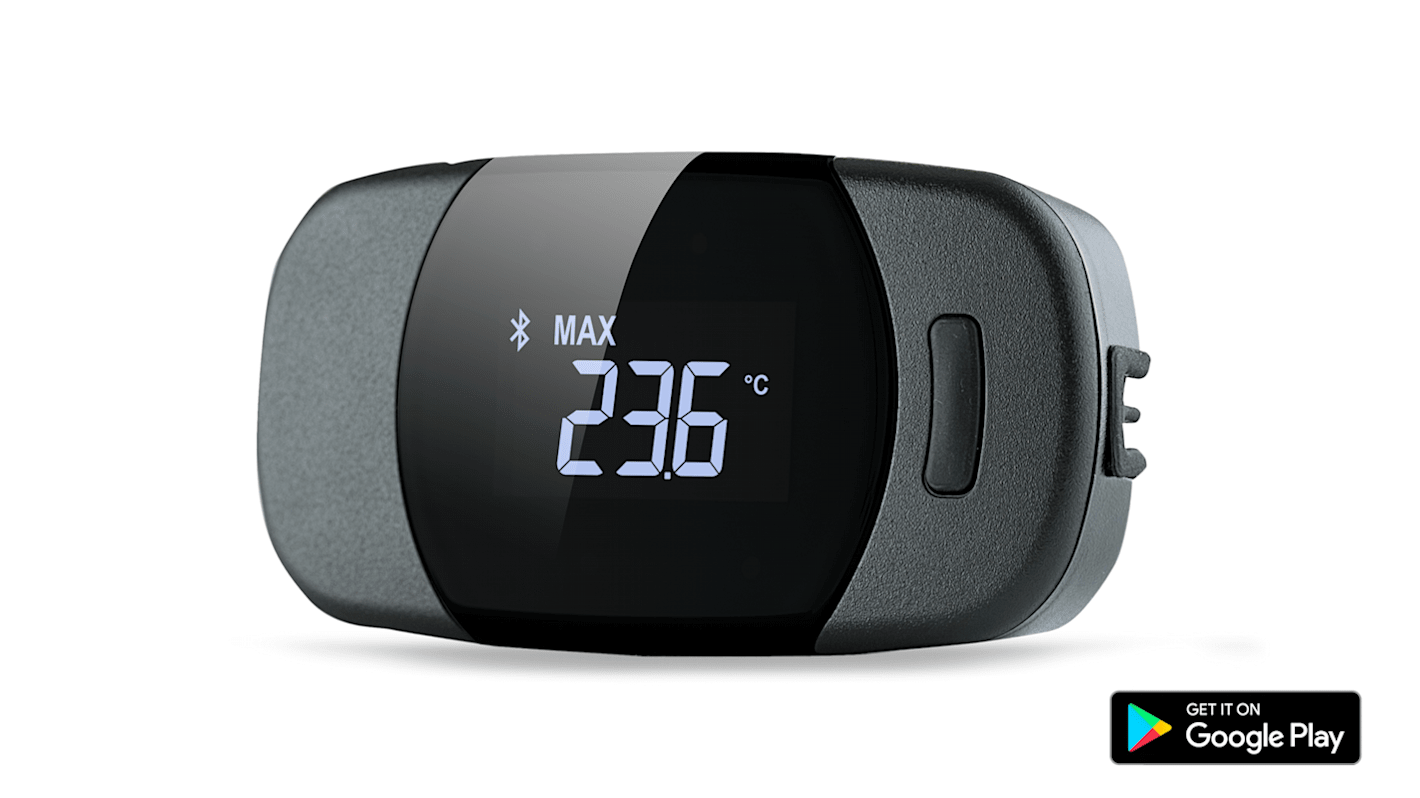

Lascar EL-BT-2 Bluetooth Wireless Temperature and Humidity Data Logger


Lascar EL-BT-2 data logger measures and stores up to 500,000 temperature and humidity readings. Its LCD screen indicates Bluetooth connection status as well as logger operation. The push button allows cycling of current, minimum and maximum recorded values. Users can view logged temperature, humidity readings and calculated dew point, the minimum and maximum values and alarm breaches. They can use zooming and panning features to view critical data easily. The EL-BT-2 comes with a rechargeable battery and can be used with a USB wall charger. The equipment complies with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. EL-BT-2 is suitable for a wide variety of applications including: pharmaceutical fridge monitoring; environmental and weather monitoring; agricultural and livestock; food & drink; building & site monitoring; HVAC.

Measurement range: -20 to +60 °C (-4 to +140 °F) temperature; 0 to 100% RH humidity
Resolution: 0.1 °C (0.1 °F) temperature; 0.1% humidity
Accuracy (overall error): ±0.4 °C (±0.7 °F) typical, temperature; ±2%RH typical, humidity
Dimensions 102 x 51 x 20 mm (4.01 x 2 x 0.78 in)
Environmental protection IP55
Connection distance: Class 2 Radio 10m (30ft)
Setup and download using the free EasyLog BT app for Android™
View data on your Android™ device or export to EasyLog Graph for Windows
Store up to 500,000 temperature and humidity readings
LCD screen shows the current, minimum and maximum readings and status indication
Rechargeable lithium ion battery

Note

The EasyLog BT app for Android™ (Version 4.0 Ice Cream Sandwich and later) is available on Google Play™ and allows users to manage the EL-BT-2 logger with ease: easily configure EL-BT-2; download recorded data for viewing; animated walkthrough of setup process; export logger data via email or other cloud services. Within the app users can set sample rate, temperature scale, temperature and humidity alarms, Bluetooth power-save settings, LCD settings and variable start times. Downloaded data is saved to user's phone memory card and can be viewed anytime. Users can transmit data via email or preferred cloud service to another device or Windows PC for further analysis.

Supplied with

Rechargeable battery, Quickstart Guide (downloadable)
