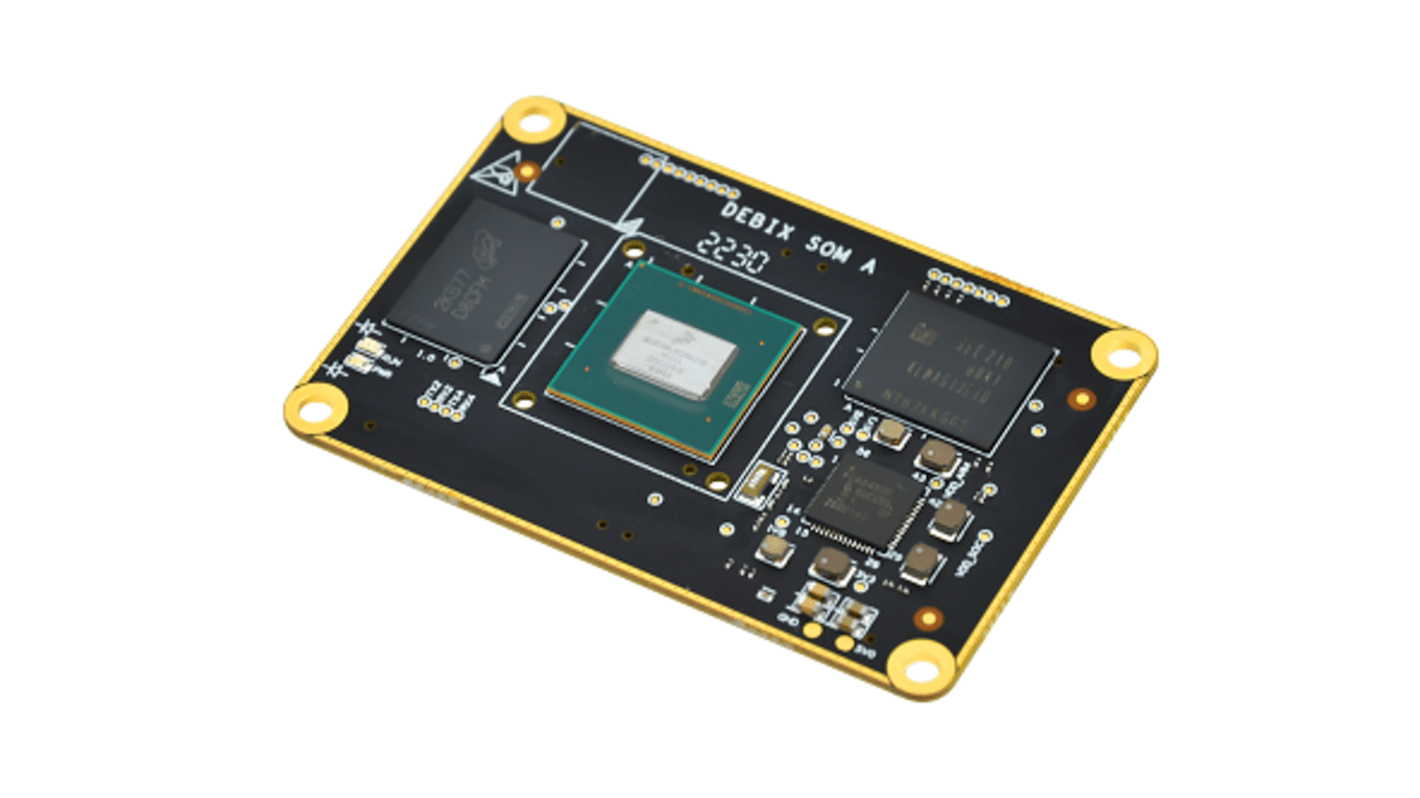

Polyhex DEBIX SOM A I2C, SPI, UART Development Board SOM-iMX8MP-01

RS庫存編號:: 261-9845
製造零件編號:: SOM-iMX8MP-01
製造商:: Polyhex

Price 个**

HK$694.50

466 現貨庫存，可於3工作日發貨。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 HK$250.00 即可享受免費送貨服務

即時庫存查詢

單位	每單位
1 +	HK$694.50

** 參考價格

RS庫存編號:: 261-9845
製造零件編號:: SOM-iMX8MP-01
製造商:: Polyhex

Datasheet - SOM-iMX8MP-01

Presenting the DEBIX SOM A, the first System on Module in the DEBIX series. It’s based on the NXP iMX 8M Plus CPU with a 2.3 TOPS NPU it’s tailored for applications requiring cutting-edge capabilities. It offers unified performance, design re-utilisation benefits, and flexible integration into a variety of embedded systems while providing industrial-grade performance and advanced features for a wide range of applications in demanding industries.

Key Benefits of the DEBIX SOM A

Industrial-Grade Performance: Engineered for demanding applications in Industry 4.0, IoT, smart cities, and multimedia, the DEBIX SOM A delivers industrial-grade performance, ensuring reliability in challenging environments.

Comprehensive Software Support: Enjoy a range of operating systems, including Android 11, Yocto-L5.10.72_2.2.0, Ubuntu 22.04, and Windows 10 IoT Enterprise. The inclusion of basic software facilitates fast and direct application development.

Real-Time Control: Benefit from real-time responsiveness with the Cortex-M7 core, supported by robust control networks like CAN FD and dual Gigabit Ethernets (one with TSN capability). Ideal for applications demanding precision and real-time control.

Advanced Vision System: Equipped with Dual Image Signal Processors (ISPs) and dual camera inputs, the DEBIX SOM A excels in efficient image processing and analysis, enhancing its suitability for applications requiring advanced vision capabilities.

Advanced Multimedia Capabilities: Elevate multimedia experiences with 1080p60 video encode/decode (H.265/H.264), 3D/2D graphics acceleration, and multiple audio/voice functionalities. The DEBIX SOM A is designed to meet the diverse multimedia demands of modern tech applications.

Technical Specifications

CPU: NXP i.MX 8M Plus (default), 4 x Cortex-A53, comes with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS. Industrial-grade CPU runs at 1.6GHz, and commercial-grade CPU runs at up to 1.8GHz. (i.MX 8M Plus series CPU optional)

Memory: 2GB LPDDR4 (1GB/4GB optional, while 8GB is optional when operating temp. is -20°C to 70°C)

Flash: Onboard 16GB eMMC (8GB/32GB/64GB/128GB/256GB optional)

OS: Ubuntu22.04, Android11, Yocto-L5.10.72_2.2.0, Windows 10 IoT Enterprise. Note: 4GB and 8GB LPDDR4 supports Windows 10 IoT Enterprise, recommend 8GB version.

Ethernet: 2 x Gigabit Ethernet controller, one of them supports Time Sensitive Networking (TSN)

Display: 1 x HDMI 2.0a, support 3840 x 2160@30Hz, 1920 x 1080@120Hz, 1920 x 1080@ 60Hz / 1 x LVDS, support 4Lane and 8Lane / 1 x MIPI DSI, support 2560 x 1080@60Hz

Camera: 2 x MIPI CSI

Audio: Up to 6 x SAI (synchronous audio interface), HiFi4 DSP, 1 x SPDIF IN, 1 x SPDIF OUT (Note: 1 x SAI with 8 TX and 8 RX lanes, 1 x SAI with 4 TX and 4 RX lanes, 2 x SAI with 2 TX and 2 RX lanes, 2 x SAI with 1 TX and 1RX lane, all SAIs support I2S and AC97)

USB: 2 x USB 3.0, configurable as device or host

UART: Up to 4 x UART

I2C: Up to 6 x I2C, I2C2∼I2C6 are exposed to the connectors (2 of the five I2Cs are multiplexed as SD1). I2C1 is not allowed to be configured.

SDIO: 2 x SDIO

SPI: Up to 3 x ECSPI

PCle: 1 x PCIe Gen3

CAN: 2 x CAN

GPIO: 13 x GPIO for default, other functional pins can be configured as GPIO through software

Power Input: 3.5V∼5V/2A

Dimensions: 60mm(L) x 40mm(W) x 5.6mm(H)

Operating Temperature: -20°C∼70°C default, -40°C∼85°C optional

Attribute	Value
Classification	Development Board
Kit Name	DEBIX SOM A
Technology	I2C, SPI, UART
Device Core	ARM Cortex A53
Processor Family Name	DEBIX SOM A
Processor Type	CPU
