Microchip, 8 bit 8 Bit MCU, PIC12F508 Microcontroller, 4 MHz, 768bit FLASH, 8-Pin SOIC
- RS庫存編號:
- 263-8054
- 製造零件編號:
- PIC12F508T-I/SN
- 製造商:
- Microchip

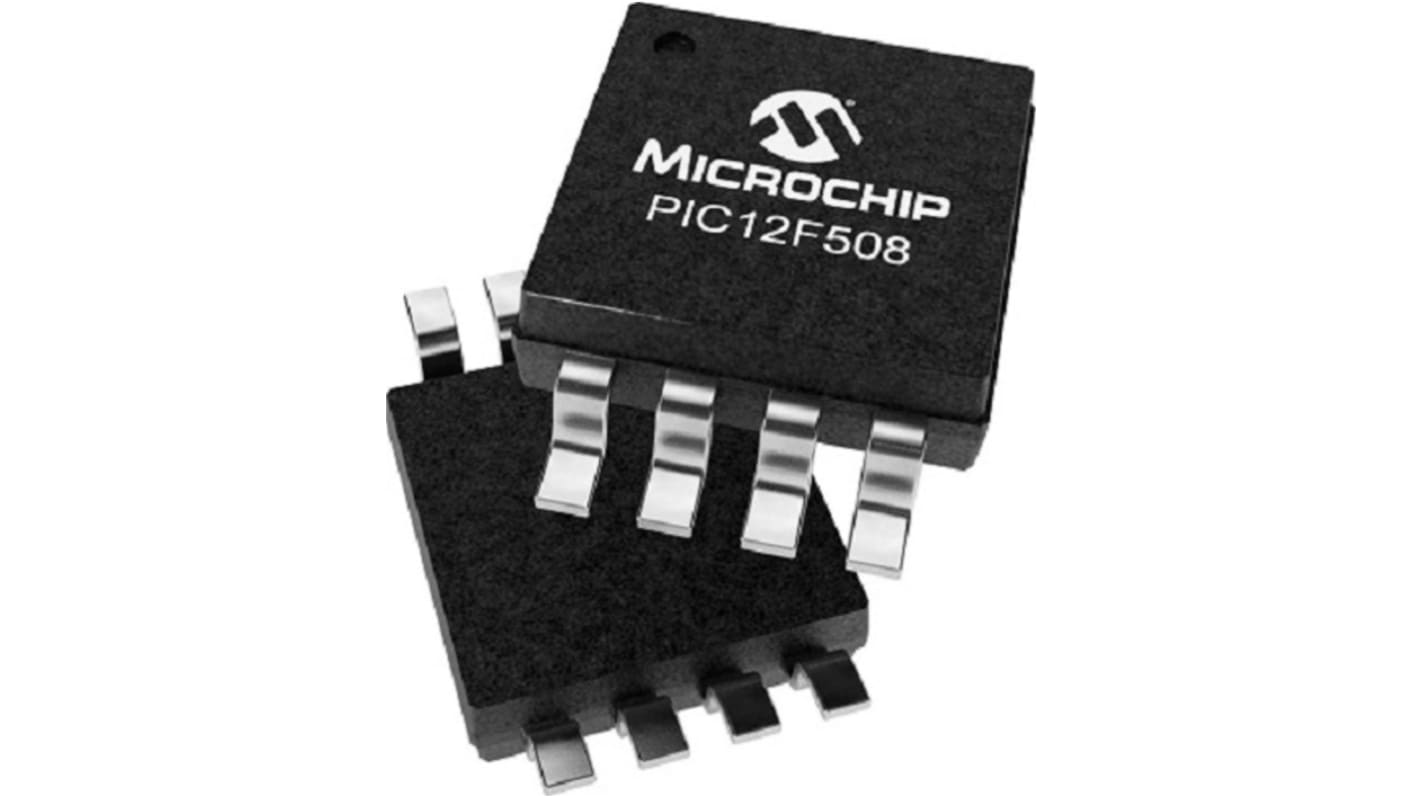

此圖片僅供參考，請參閲產品詳細資訊及規格
小計（1 卷，共 3300 件）*
HK$22,687.50
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年1月26日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每卷* |
|---|---|---|
| 3300 + | HK$6.875 | HK$22,687.50 |
* 參考價格
- RS庫存編號:
- 263-8054
- 製造零件編號:
- PIC12F508T-I/SN
- 製造商:
- Microchip
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Microchip | |
| Series | PIC12F508 | |
| Product Type | Microcontroller | |
| Package Type | SOIC | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Device Core | 8 Bit MCU | |
| Data Bus Width | 8bit | |
| Program Memory Size | 768bit | |
| Maximum Clock Frequency | 4MHz | |
| RAM Size | 25bit | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Number of Programmable I/Os | 6 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Minimum Supply Voltage | 2V | |
| Instruction Set Architecture | 33 Instructions, 12 Bit | |
| Number of Timers | 1 | |
| Program Memory Type | FLASH | |
| 選取全部 | ||
|---|---|---|
品牌 Microchip | ||
Series PIC12F508 | ||
Product Type Microcontroller | ||
Package Type SOIC | ||
Mount Type Surface | ||
Pin Count 8 | ||
Device Core 8 Bit MCU | ||
Data Bus Width 8bit | ||
Program Memory Size 768bit | ||
Maximum Clock Frequency 4MHz | ||
RAM Size 25bit | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Number of Programmable I/Os 6 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Minimum Supply Voltage 2V | ||
Instruction Set Architecture 33 Instructions, 12 Bit | ||
Number of Timers 1 | ||
Program Memory Type FLASH | ||
The Microchip PIC12F508 devices from Microchip Technology are low cost, high performance, 8 bit, fully static, flash based CMOS microcontrollers. They employ a RISC architecture with only 33 single word or single cycle instructions. All instructions are single cycle except for program branches, which take two cycles. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8 bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly.
Precision 4 MHz internal oscillator
Baseline Core with 33 Instructions 2 Stack Levels
All single cycle Instructions except for program branches which are two cycles
12 bit wide instructions
8bit wide data path
25 mA source or sink current I/O
Low power 100nA sleep current
One 8-bit timer TMR0
Watchdog timer
In Circuit Serial Programming capability
In Circuit debugging support
Programmable code protection
