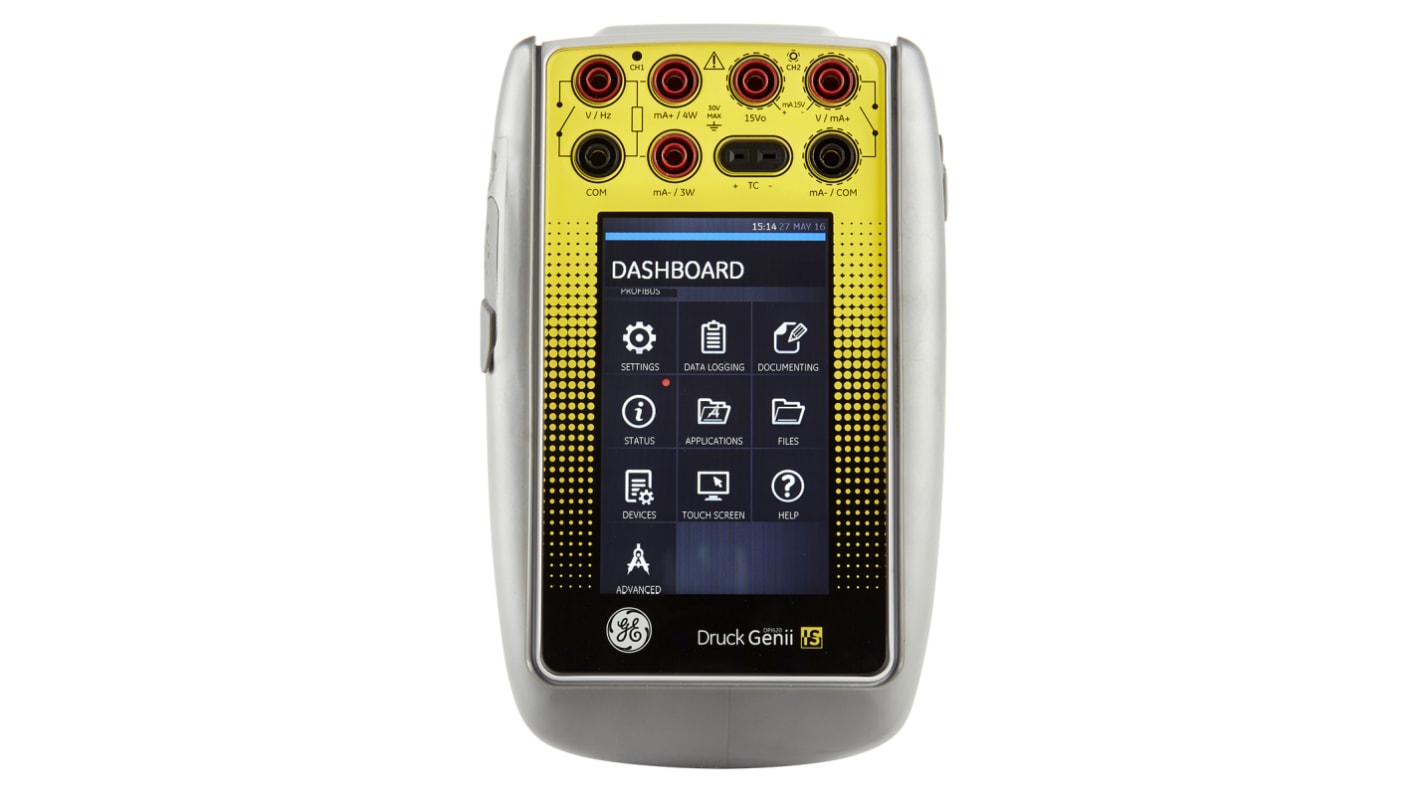

Druck Genii IS Multi-Function Calibrator, 24 mA, 30V 183 mm 96 mm 200 mm

查看所有Multi Function Calibrators

小計（1 件）*

HK$80,079.20

Add to Basket
選擇或輸入數量
有庫存
  • 5 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$80,079.20

* 參考價格

RS庫存編號:
123-6022
製造零件編號:
DPI620G-IS-L
製造商:
Druck
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Druck

Maximum Voltage Measurement

30V

Product Type

Multi-Function Calibrator

Accuracy

0.005 %FS

Maximum Pressure Measurement

1000bar

Port Connections

USB

Maximum Current Measurement

24mA

Battery Life

25h

Battery Type

AA

Power Source

Battery

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

55°C

Standards/Approvals

BS EN 610101:2010, BS EN 613261:2006, CE Mark, Pressure Equipment SEP

Length

96mm

Weight

650g

Hazardous Area Certification

ETL, IECEx, ATEX

Width

200 mm

Height

183mm

Resolution

0.01°C, 0.00001 V

Model Number

Genii IS

COO (Country of Origin):
CN

Druck Intrinsically Safe Advanced Modular Calibrators


DPI 620 GENII IS is Druck's next-generation instrument for calibration, configuration and maintenance of electrical, frequency, pressure and temperature devices in measurement and control applications. It can measure and source a wide range of parameters simultaneously including mA, mV, V, Ohms, frequency, RTDs, T/Cs, and HART/Fieldbus digital signals. It includes a loop power supply to energise devices and control loops and a stabilised DC voltage supply for ratio metric transducers.

We have a variety of Druck Intrinsically Safe Advanced Modular Calibrators in our offer:

• DPI620G-IS-FFPB (123-6026) - Genii intrinsically safe advanced modular calibrator and HART/Fieldbus/Profibus communicator

• DPI620G-IS-L (123-6022) - Genii intrinsically safe advanced modular calibrator without communicator

• DPI620G-IS-PB (123-6025) - Genii intrinsically safe advanced modular calibrator and HART/Profibus communicator

• DPI620G-IS (123-6023) - Genii intrinsically safe advanced modular calibrator and HART communicator

• DPI620G-IS-FF (123-6024) - Genii intrinsically safe advanced modular calibrator and HART/Fieldbus

Features & Benefits


• Multifunction capabilities, electrical frequency, temperature and pressure

• HART, Foundation Fieldbus & Profibus communicator (depending on the choice of model)

• Optional Fieldbus communicator

• Modular re-arrangeable and expandable concept

• Each individual component can be used as a stand-alone instrument

• Allows significant inventory reductions

• Improves operator safety and simplifies training

• Reduces cost ownership

• Provides simultaneous measurement and source capabilities of mA, V, Ohms, frequency, pressure, RTDs and T/Cs, HART, Fieldbus for the set-up, testing and calibration of most types of process instruments. (Transmitters, transducers, gauges/indicators, switched, proximity detectors, counters, RTDs, thermocouple, and valve positioners

• ATEX and IECEx approval for hazardous zones 1 and 2

• Multi-functionality, a great feature of Druck's intrinsically safe, advanced modular calibration systems. Each one of the 4 interchangeable basic components perform duties that previously required a multitude of different systems.

• The easy-to-detach battery pack allows hot-swapping in hazardous areas and includes an LED charge indicator to show battery condition without the need to turn the device on

• Regularly used or customised routines can be saved in the favourites menu

• Intrinsically safe Lithium-Polymer battery provides reliable power for a full 8-hour shift

• Handheld unit compact and lightweight - only 1.1 kg/2.4 lb

• Data logging up to 32 Gb storage, enough for a complete database of procedures and results

• Fully documenting – automated procedures, PASS/FAIL errors, results storage

• 1-year uncertainty for mA 0.016% RDG + 0.0065% FS

• 1-year uncertainty for pressure from 0.025% FS

• weatherproof design enables it to handle the toughest jobs on site

The DPI 620-IS series combines an advanced multi-function calibrator with world-class pressure measurement generation, now available with a new and improved design:

• Smartphone technology, touch display and UI (user interface) which helps support gestures and swipes with a flatter menu structure

• A new digital platform and modems which support HART and Fieldbus applications

• A new dashboard, allowing a user to promptly launch applications

• The new TASK menu allows for single touch configuration, useful for common devices such as pressure and temperature transmitters, transducers, switches and valve positioners

Did you know?


The "IS" in the name of the multifunction calibrator stands for intrinsically safe, if an item is intrinsically safe it means that it is incapable of releasing sufficient electrical and thermal energy under normal or abnormal conditions. This results in the item not being able to cause ignition of a specific hazardous atmospheric mixture in its most easily ignited concentration.
