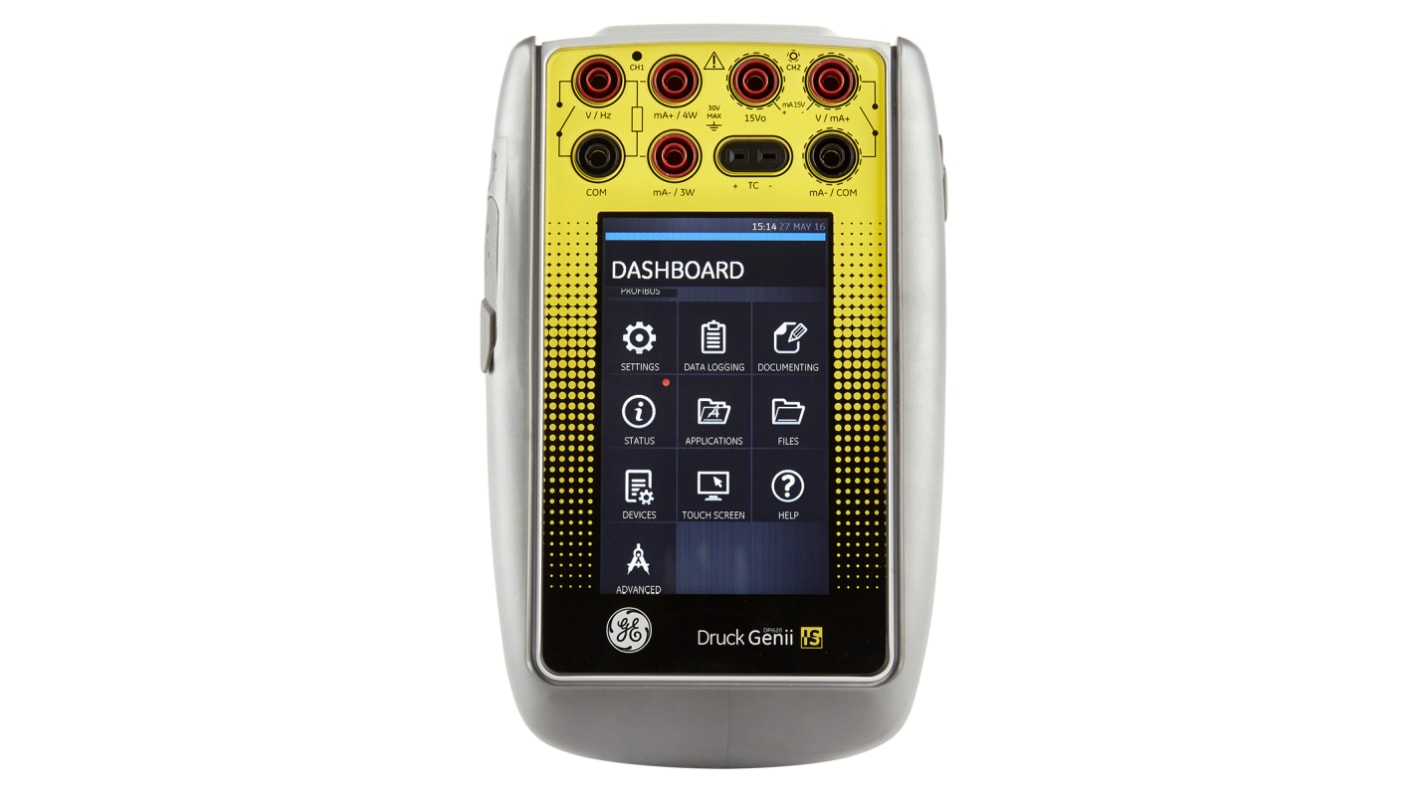

Druck Genii IS Multi-Function Calibrator, 55 mA, 30V 55 mm 183 mm 114mm

RS庫存編號:: 123-6024
製造零件編號:: DPI620G-IS-FF
製造商:: Druck

Druck Genii IS Multi-Function Calibrator, 55 mA, 30V 55 mm 183 mm 114mm

小計（1 件）*

HK$168,366.00

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2027年1月04日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$168,366.00

* 參考價格

RS庫存編號:: 123-6024
製造零件編號:: DPI620G-IS-FF
製造商:: Druck

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Druck
	Product Type	Multi-Function Calibrator
	Maximum Voltage Measurement	30V
	Accuracy	0.005 %FS
	Maximum Pressure Measurement	1000bar
	Port Connections	USB
	Maximum Current Measurement	55mA
	Battery Type	Lithium-ion
	Power Source	Battery
	Safety Category Voltage	30V
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	+50°C
	Weight	1.10kg
	Length	183mm
	Height	55mm
	Width	114mm
	Standards/Approvals	BS EN 613261:2006, BS EN 610101:2010, CE, ETL
	Hazardous Area Certification	ETL, IECEx, ATEX
	Model Number	Genii IS
	Plug Type	Type Mini B

	選取全部
	品牌 Druck
	Product Type Multi-Function Calibrator
	Maximum Voltage Measurement 30V
	Accuracy 0.005 %FS
	Maximum Pressure Measurement 1000bar
	Port Connections USB
	Maximum Current Measurement 55mA
	Battery Type Lithium-ion
	Power Source Battery
	Safety Category Voltage 30V
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature +50°C
	Weight 1.10kg
	Length 183mm
	Height 55mm
	Width 114mm
	Standards/Approvals BS EN 613261:2006, BS EN 610101:2010, CE, ETL
	Hazardous Area Certification ETL, IECEx, ATEX
	Model Number Genii IS
	Plug Type Type Mini B

COO (Country of Origin):: CN

Druck Multi-Function Calibrator, 1000 bar Maximum Pressure Measurement, 0.005% FS Accuracy - DPI620G-IS-FF

This multi-function calibrator provides precise measurement and source capabilities for field and workshop tasks. It operates across a broad ambient range and is powered by a rechargeable lithium‑ion cell, enabling portable use. The instrument includes a USB Type Mini B connection for data transfer and is certified for use in hazardous locations under ETL, IECEx and ATEX schemes.

Features and Benefits:

• 0.005%FS accuracy for high-precision calibration tasks
• 1000bar maximum pressure measurement to cover extreme ranges
• 30V maximum voltage and 55mA maximum current for electrical tests
• Lithium‑ion battery operation for untethered field deployment
• ETL, IECEx, ATEX hazardous-area approval supporting safe use

Applications

• Suitable for commissioning pressure transmitters and sensors
• Used for on-site loop checks of 4 to 20mA control circuits
• Ideal for hazardous-area maintenance and inspection routines
• Used with portable test benches for industrial verification
• Can be used for calibration audits requiring certified tools

What port is provided for data connection and charging?

A USB Type Mini B port is included for communication and power interfacing.

What environmental range allows field operation?

The device functions from -10°C to +50°C ambient temperature.

How Compact is the unit for transport?

It weighs 1.10 kg and its external dimensions are 183 x 114 x 55 mm.

Which safety voltage category applies to electrical tests?

The equipment is rated to a 30V safety category for voltage measurements.
