產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	TE Connectivity
	Product Type	Sensor Development Tool
	Sensor Technology	Barometric Pressure Sensor, Temperature & Humidity Sensor
	For Use With	Digilent Pmod
	Kit Classification	Add On Board
	Kit Name	MS5637
	Standards/Approvals	RoHS

	選取全部
	品牌 TE Connectivity
	Product Type Sensor Development Tool
	Sensor Technology Barometric Pressure Sensor, Temperature & Humidity Sensor
	For Use With Digilent Pmod
	Kit Classification Add On Board
	Kit Name MS5637
	Standards/Approvals RoHS

Datasheet

COO (Country of Origin):: CN

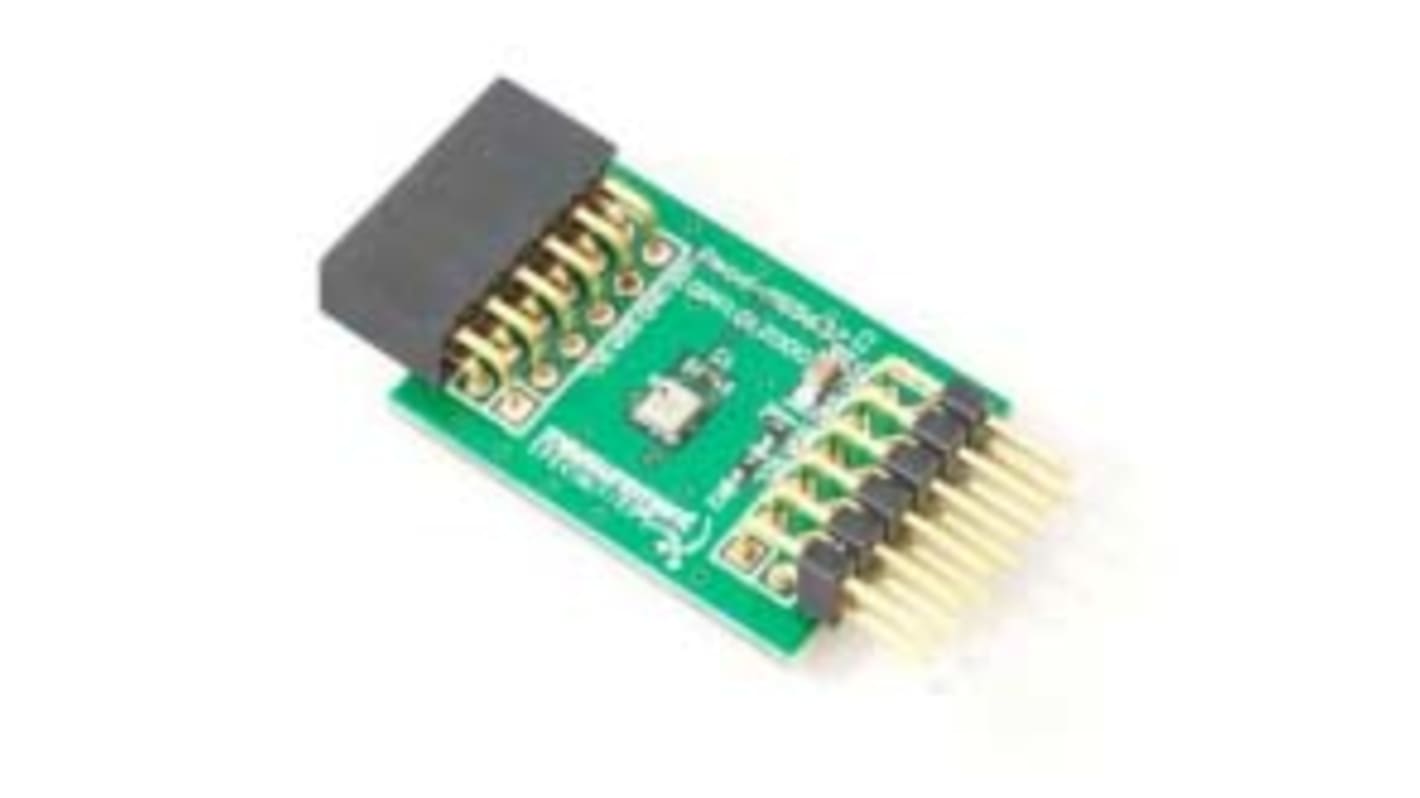

The MS5637 peripheral module provides the necessary hardware to interface the MS5637 digital barometric pressure and temperature sensor to any system that utilizes Pmod compatible expansion ports configurable for I2C communication. The MS5637 sensor is a self-contained pressure and temperature sensor that is fully calibrated during manufacture. The sensor can operate from 1.5V to 3.6V. The sensor module includes a high-linearity pressure sensor and an ultra-low power 24 bit _Σ ADC with internal factory-calibrated coefficients.

Measures pressure from 300mbar to 1200mbar

Measures temperature from -40°C to 125°C

I²C communication

Fully calibrated

Fast response time

Very low power consumption

4-pin Grove compatible connector

I²C interface

Parameters stored on chip

300 to 1200mbar pressure range

-40°C to 85°C temperature range

Very low power consumption

Operates 5V

Altitude resolution at sea level is 20 cm of air

Fast conversion time 0.5ms typical

單位	每單位
1 - 4	HK$240.20
5 - 9	HK$235.40
10 +	HK$230.70

TE Connectivity MS5637 Barometric Pressure Sensor, Temperature & Humidity Sensor Add On Board Digilent Pmod
